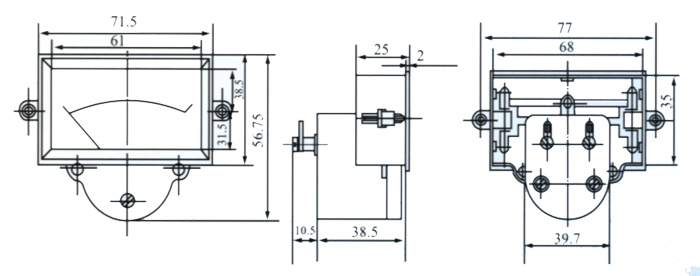

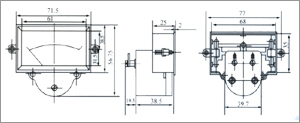

型號\數值\代號 |
A |
B |
C |
D |
E |
F |
G |
H |
K |
備注 |
89C13 |
71 |
39 |
59 |
32 |
65 |
68 |
25 |
4 |
35 |
|
|
| |
| It is moving-coil panel meter with core-magnet. The meters are suitable for electronic instruments, communication facilities and vehicles to indicate a variety of electric. The specifications are in agreement with GB/T7676-1998. |
| |
| Measuring range and Accuracy Class |
| |
|
Accuracy class |
Units |
Range |
Remark |
DC Ammeters |
1.52.5 |
uA |
50-500 |
Directly connected
(including the range of ≤3A
for models 91C4 and YMC9.) |
mA |
1-500 |
A |
1-15 |
20-3000 |
With external shunt of 75mV |
DC Voltmeters |
mV |
45-750 |
Directly connected |
V |
1.5-600 |
AC Ammters |
1.5
2.5 |
A |
0.1-10 |
Directly connected |
20-3000 |
With current transformer |
AC Voltmeters |
V |
10-600 |
Directly connected |
|
| |

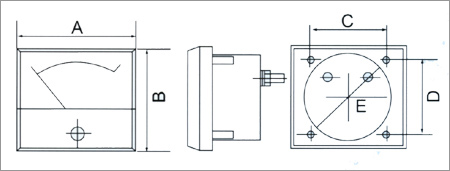

| Dimensions Chat |
| |
|
| |
|
| |
Model |
A |
B |
C |
D |
E |
84C10 |
50 |
60 |
48 |
48 |
ø44 |
Mu45 |
59 |
53 |
38 |
38 |
ø45 |
GLB-450 |
45 |
42 |
32 |
32 |
ø37 |
|
| |
|
| |
