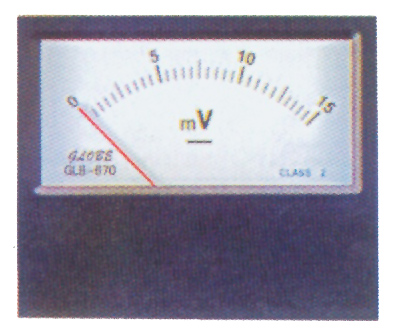

GLB-670
Range:
DC 60mV-300V
DC 1-15A
DC 1-500mA
DC 50-500uA
AC 5-50A
AC 15-500V
Class:2.0 |
|
|
| |
 |
GLB-51
Range:
AC 1.5-25A
AC 15-300V
Class:2.5 |
|
|
| |
 |

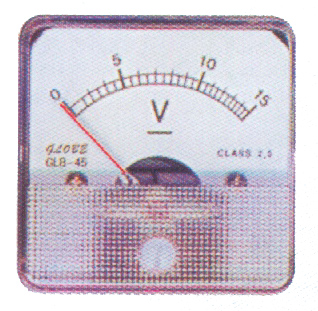

GLB-45
Range:
DC 15-300V
DC 1-10A
DC 50-500mA
DC 50-500 g A
Class:2.5 |
|
|
| |
|
| |
Basic specifications
The meters are moving-coil panel meters with core-magnet,designed to be window mounted, and suitable for communication, broadcasting equipments and electronic instruments as well as vehicles.
The specifications are in agreement with GB/T7676-1998
Acccuracy class:
1.5,2.5
Measuring range:
DC 50 ut A-3000A,45mV-600V
AC 10mA-3000A,10V-600V |
|
|
| |
|
| |
|
