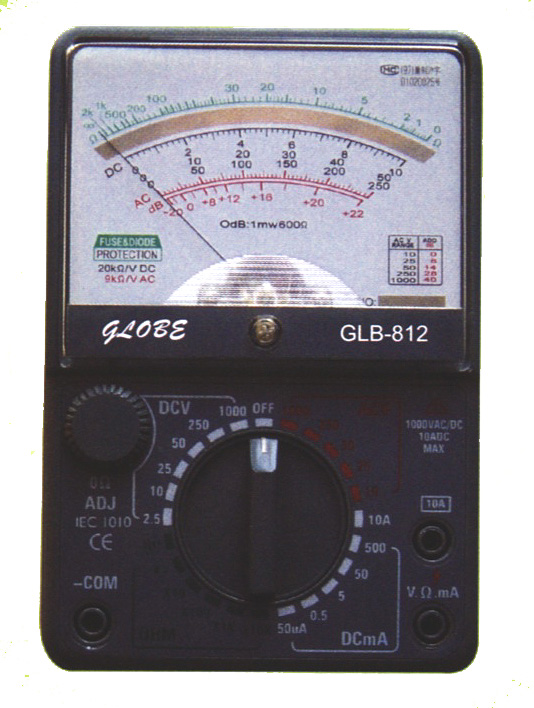

GLB-812(MF182) - DCV:0-2.5-10-25-50-250-1000V(±3% F.S) - ACV:0-10-25-50-250-1000V(±4% F.S) - DCCURRENT:0-50uA-0.5mA-5mA-50mA-500mA-10A(±4% F.S) - RESISTANCE:RX1-RX10-RX100-RX1K-RX10KΩ(±3% OF SCALELENGTH) - BUILT-IN:BUZZER - BATTERY:1.5V(SUM-3)X2 9V(006P)X1 - DIMESIONS:155X104X33MM - NET WEIGHT:280g

GLB-15D - A taut-band type is adopted in the meter department.Thisand other shock proof designs enable the instrument to withstand shock even when it is dropped on a concrete floor from one meter height. - This unit can detemine the capacity of manganese and alkaline batteriesby measuring their voltage when the load is 10Ω. - By connecting the optional probe THP.the unit can measure temperatures from -20 to +220℃ - DCV=250m/10/50/250/500/1000V ±5%f.s. - ACV= 10/50/250/500/1000V ±5%f.s. - DCA=250u/25m/500mA ±5%f.s. - Ω=200/2K/1MΩ±5% of arc. - BATT.CHECK=0.8V-1.6V - Power source=R6(1.5V)X1 - Size.weight=142X97X37mm.200g

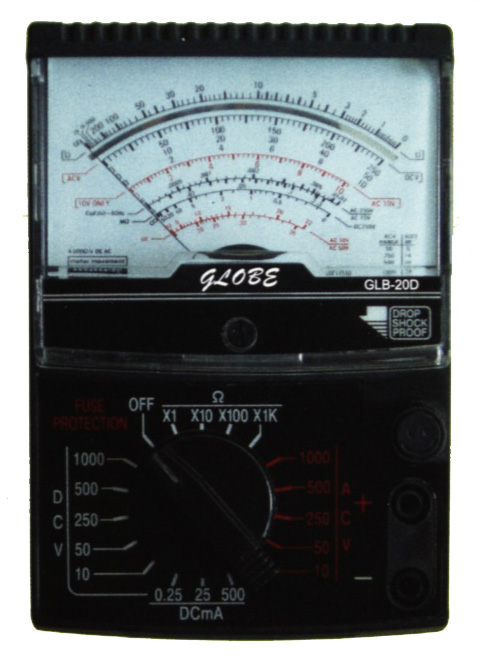

GLB-20D - A taut-band type is adopted in the meter department. - This and other shockproof designs enable the instrument to withstand shock even when it is dropped ona concrete floor from one meter height. - This unit can determine the capacity of manganese and alkaline batteries by measuring their voltage when the load is 10 4. - By connecting the optional probe THP, the unit can measure temperatures from-20 to +200℃ - DCV=250m/10/50/250/500/1000V ±5%f.s. - ACV=10/50/250/500/1000V ±5%f.s. - DCV=250u/25m/500mA±5%f.s. - Ω=500/25k/1MΩ MAX±5% Ofarc. - Power source=R6(1.5v)X1 - Size,Weight=140X95X40mm 175g

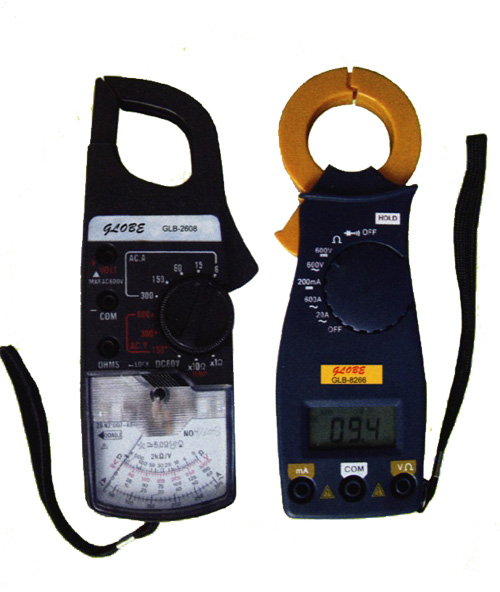

GLB-2608 - 300A AC ANAL OG CLAMP METER - Versatile Clamp meter with AC current,AC/DC voltage, resistance and temp. measurement - Tear drop shapeg jaws for easy of use in crowned cable areas Rotary switch for one hand operation - Pointer lock device to freeze readings - Overload protection - Technical Specifications - ACV=150-300-600V, ±3% - ACA=6-15-60-300A ±3%(Frequency:50/60Hz) - DCV=60±3% - OHM=1K-10KΩ,±2% - TEMP=-20 to l50℃,±3% - Audible continuity - Clamp size=33mm(Max.) - Dimensions=78X193X39mm - Battery=l.5VX1,AAsize - Weight=280g approx. - Accessories=Carrying case,temperature probe(optional)

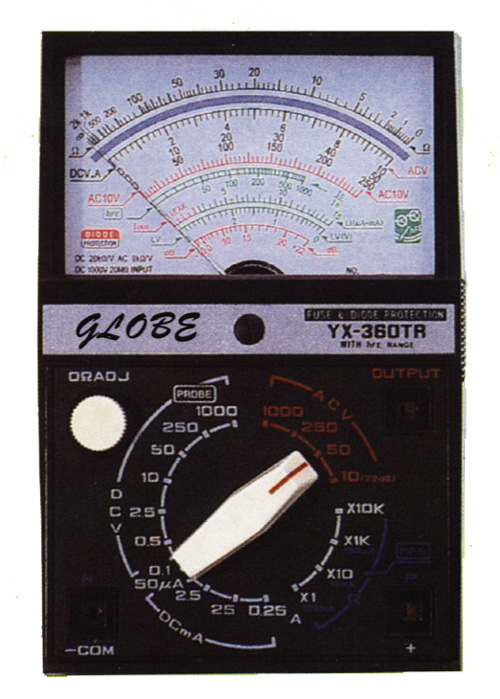

YX360TR FEATURES & SPECIFICATIONS - Excellent DC resolution factor of 2mV and expanded resistance measurement from 0.2Ω to 20MΩ. - Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components. - A large and bright meter with a scale length of 80mm and its sensitivity of 44uA at full scale. - Fuse and diode protection. - Measures hFE to 1000 using optional TR connector. - DCV=100m/500m/2.5/l 0/50/250/1000V(20KΩ/V) ±3%.f.s 25KV(with HV probe) - ACV= 10/50/250/1000V(9KΩ/V)±4%f.s. - DCA=50u/2.5m/25m/250mA±3%f.s. - Ω=2K/20K/2M/20MΩ MAX ±3% of arc. - dB=-10-50dB - LI=150u/15m/150mA - hFE=0-1O00(W/TR connector) - Power source=R6(1.5V)X2,6F22(9V)X1 - Size,Weight=150XlO0X50mm 280g
